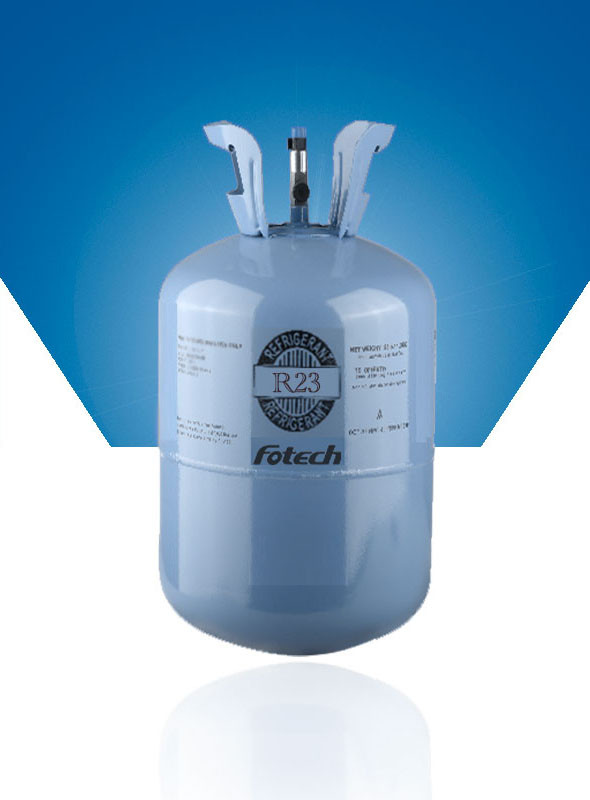

Refrigerant R23

Refrigerant R23

Refrigerant R23
CategoriesHFC
AlbumView larger image
BrandFOTECH
ModelR23
CAS No.75-46-7
Other NamesTrifluoromethane R23
MFCHF3
EINECS No.200-872-4
Grade StandardIndustrial Grade
Purity99.9%
Appearancecolorless
ApplicationRefrigerant
Purity %≥99.9%
Moisture %≤0.001
Download DOC
Update Time2018-12-18
Detail Information


Trifluoromethane (HFC-23)

R23(HFC-23) is a high pressure liquefied gas, which was usually used as a refrigerant to substitute CFC-13. And it is also the ideal substitute for Halon with the quality of cleanness, low toxicity, and the excellent effect to fight fire.

Properties:

Index

Unit

HFC-23

Chemical formula

CHF3

Molecular weight

g/mol

70.0

Melting point

°C

-152.15

Boiling point

°C

-82.2

Specific gravity(25°C liquid)

g/cm3

0.669

Vapor pressure(25°C)

MPa

4.732

Critical temperature

°C

25.95

Critical pressure

MPa

4.832

Critical density

g/cm3

0.524

Vaporization heat at boiling point

KJ/kg

240

Water solubility(25°C)

W%

0.10

Specific heat(25°C liquid)

KJ/kg·k

1.55

ODP

0

GWP

6

Quality Specification:

Index

Quality Performance

Appearance

Colorless, not turbid

Odor

No strange stench

Purity %≥

99.9%

Moisture %≤

0.001

Acidity (as HCl) %≤

0.00001

Evaporation residue %≤

0.01

Packing:8kg; 30kg/40L & 380kg/500L high pressure steel cylinders.
